Coiled Tubing Service Big ID Motor Head Assembly CT Tools String

Name: Coiled Tubing Service Big ID Motor Head Assembly CT Tools String
Brand: ZZ TOP OIL TOOLS
Price: 1 USD

China Coiled Tubing Service Big ID Motor Head Assembly CT Tools String wholesale

Brand Name : ZZ TOP OIL TOOLS

Model Number : Heavy Duty Motorhead Assembly

Certification : ISO, API

Place of Origin : China

MOQ : 1 set

Price : USD 1-10000/set

Payment Terms : L/C, T/T, D/P

Supply Ability : 10 set/month

Delivery Time : 30-50 days

Packaging Details : Pollywood

Product : Heavy Duty Motorhead Assembly

Application : Oil Well CT Operation

Usage : Coiled Tubing Tool String

Material : Alloy Steel

Size : 1 3/4" - 3 1/8"

Connection : AMMT, PAC

Working Condition : Oil & Gas & H2S service

Delivery : 20-30 days

Contact Now

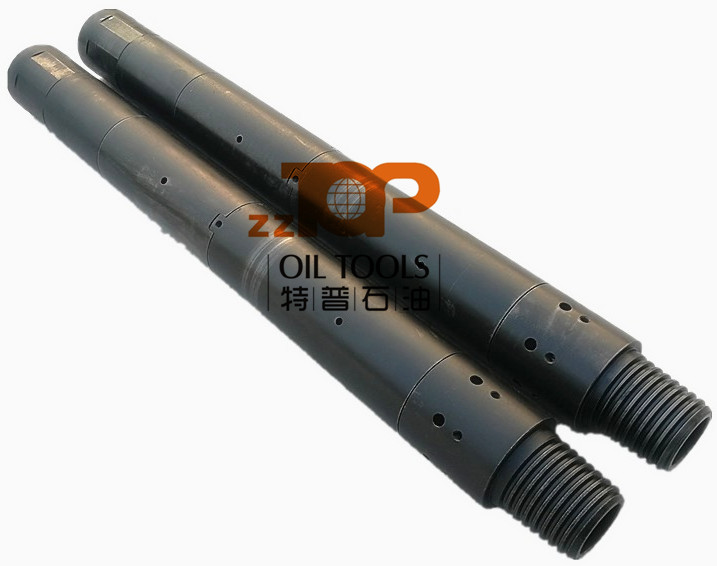

Coiled Tubing Service Big ID Motor Head Assembly CT Tools String

The Motorhead Assembly for coiled tubing service consists of Big ID Flapper Check Valve, Big ID Hydraulic Disconnect and the Burst Disc Circulation Valve. Compared to conventional individual components, the ID increased approximately by 40% and the big ID motorheady assembly is specially designed for non-heavy duty operations, such as sand washing, clean-out and gas lifting, etc.

The standard configuration consists of the maximum flow through bore while maintaining maximum tensile strength in the motorhead assembly. By interchanging the piston sleeve, the drop/trip ball size can be varied to suit the desired tool string requirements. This is a particularly useful feature when the hydraulic disconnect is situated below jars and intensifiers and ID restrictions are a considering factor. Running the heavy duty hydraulic disconnect below jars and intensifiers ensures that if disconnection of the toolstring is necessary, a greater proportion of the tool string is safely returned to surface.

Bill of Material For Motorhead Assembly

Item	Description	Qty
1	Dimple Sub- External slip connector	1
2	Slip	1
3	Bearing	1
4	Set Screw-External slip connector	4
5	Nipple	1
6	O Ring	2
7	O Ring	1
8	Flapper Housing-DFCV	1
9	Flapper Assembl-DFCV	2
10	Spring-DFCV	1
11	Flapper body-DFCV	2
12	Upper release sup-Disconnect	1
13	Release piston-Disconnect	1
14	Drop Ball-Disconnect	1
15	Fish neck/Body-Disconnect	1
16	Collet slip-Disconnect	1
17	Collect Sleeve-Disconnect	1
18	Hex Socket set screw-Disconnect	1
19	Shear pin with shear collar assy-Disconnect	10
20	Circulation valve body	2
21	Rupture disc( Ordered additional)	1
22	Shear pin-Circulation Valve	6
23	Drop Ball-Circulation Valve	1
24	Flapper-Double flapper Check valve	2
25	Flapper Spring-DFCV	1
26	Flapper Pin shaft	2
27	O Ring	2
